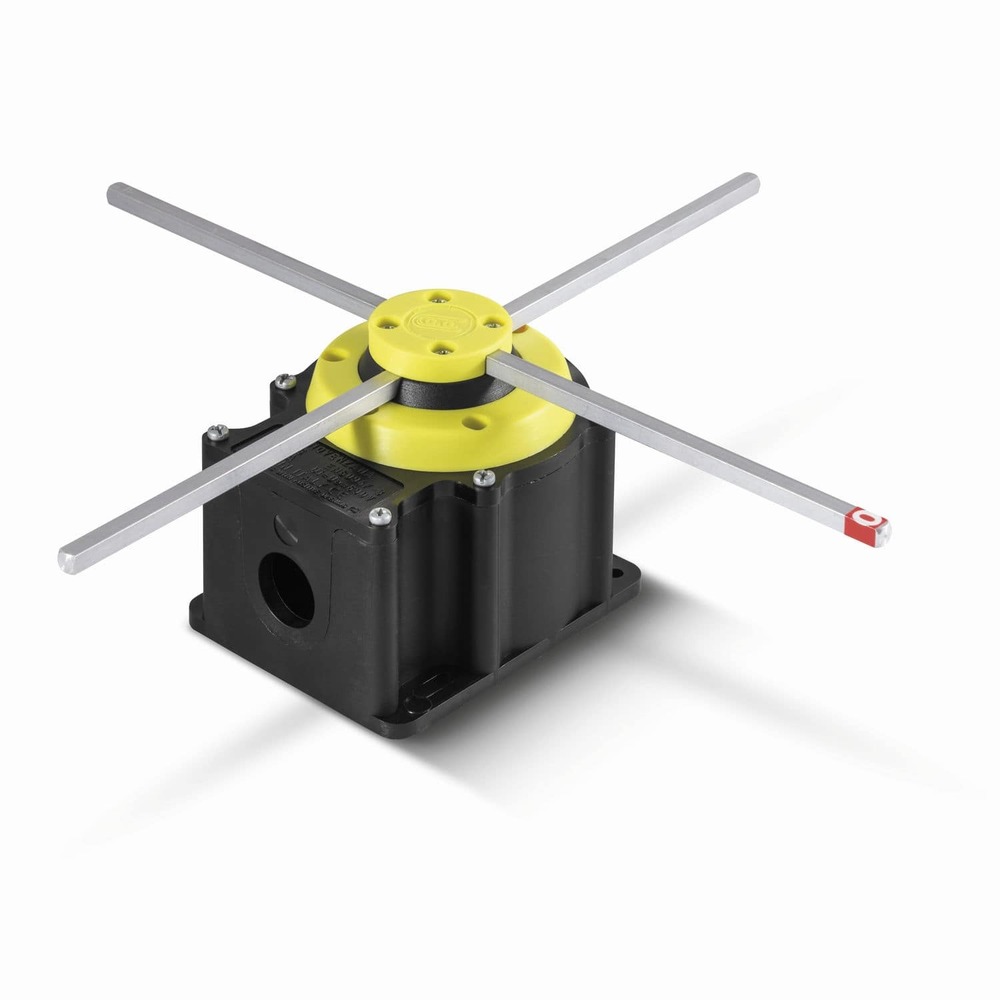

Cross Bar Limit Switch

Price 3800 INR/ Piece

Get a Price/Quote

Cross Rotary Limit Switches are 4-way switches operating at 90 rotations. It has 4 positions

operations used for single/ two speed motor control. They have 300 mm cross rods with 2 or 4

contacts operating the NO/NC change-over contact elements.

FCR series -

Giovenzana Position Limit disconnector switch with IP 65 protection, has 4 fixing holes
and positive opening NC contacts for safety functions.
Aluminum rods with 6x6 mm section and enclosure in thermoplastic material.
Arranged with 1 output for cable clamps to reduce installation time and make wiring easier.
Self-extinguishing thermoplastic housing VO uL94
Rated insulation voltage (Ui) 690v Rated thermal current 16 Amp

PRODUCT CODE	DESCRIPTION
FCR001	Cross Bar Limit Switch for Single Speed Motor Control 3 Position withmechanical interlock (IP65) 2NO+2NC
FCR006	Cross Bar Limit Switch for Two Speed Motor Control 5 Position with mechanical interlock 4NO+4NC (IP65)
FFH001	Cross Bar Limit Switch for Single Speed Motor Control 3 Position with mechanical interlock 2NO+2NC (IP65)
FFH006	Cross Bar Limit Switch for Two Speed Motor Control 5 Position with mechanical interlock 4NO+4NC (IP65)
