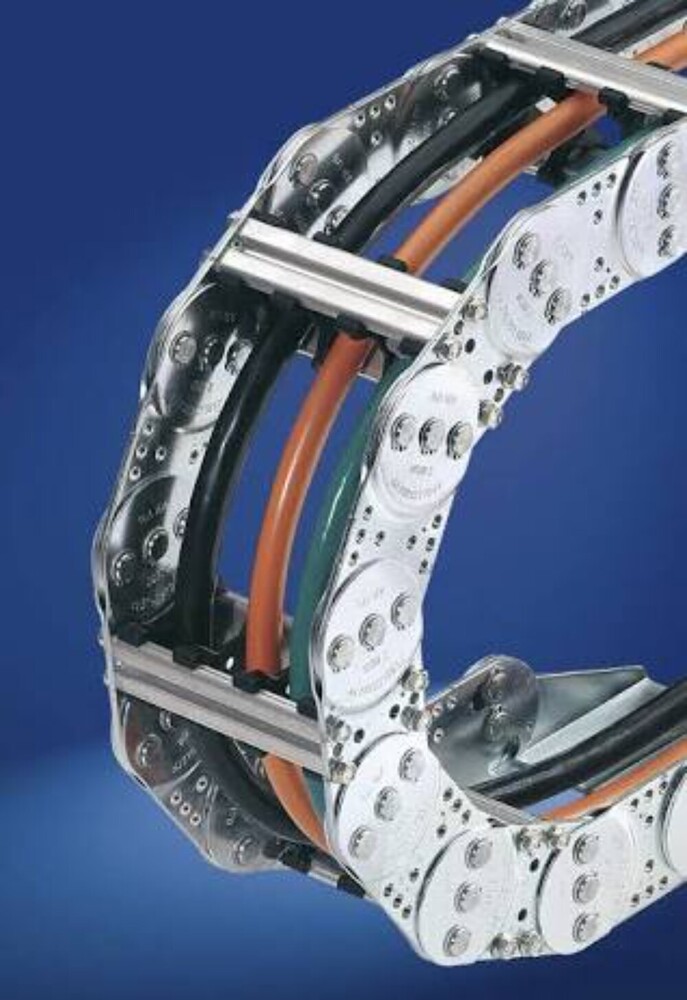

Steel Drag Chain

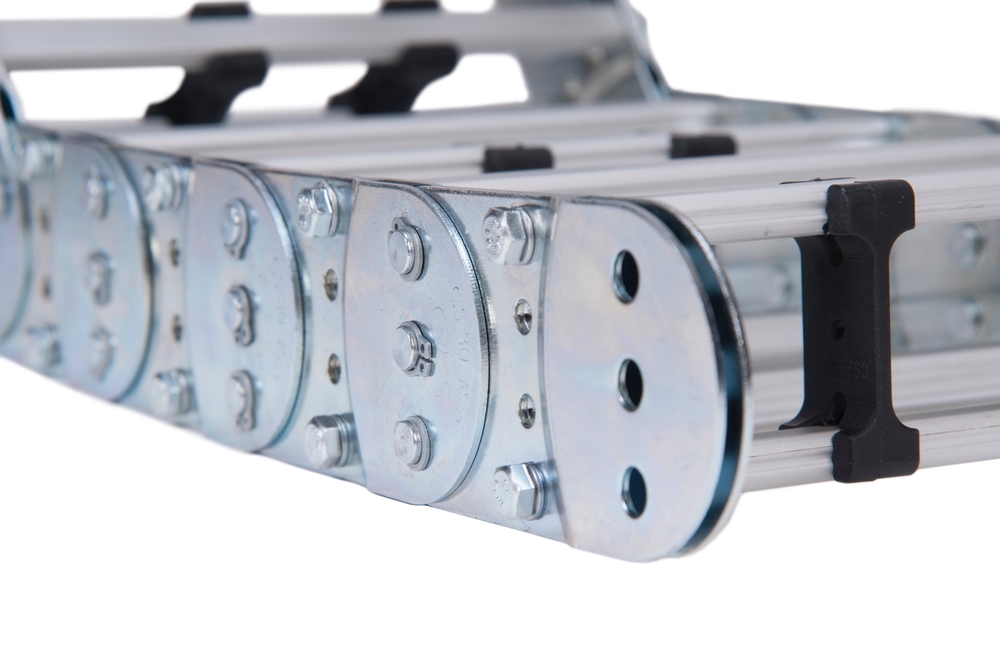

Steel cable carriers are extremely sturdy with link plates and dedicated joint design with multi stroke system and hardened bolt. The extremely sturdy design allows extensive unsupported lengths and high possible additional loads.

1. Extremely robust and stable steel chains for heavy mechanical loads and harsh environmental conditions.
2. Applicable for very long unsupported lengths also for large additional loads
3. Custom or standard components built to your specifications
4. Avoidance of mechanical strain on the cables/hoses
5. No tensile stress or compression,
6. No frictional wear as there is no relative movement between the cable/ hoses and the cable drag chain.
7. No bending below an established radius.
8. No crushing, buckling or forming of loops, or torsion strain.
9. Speed - 1 -2 m/sec
10. Available in fully covered type or open type.
11. Range of available inner height: 22 mm to 250 mm
12. Range of available inner widths: 50 mm to 1545 mm
13. Range of available Bending : 50 - 800 mm
14. Travel length: 3.5 mtrs to 40 mtrs

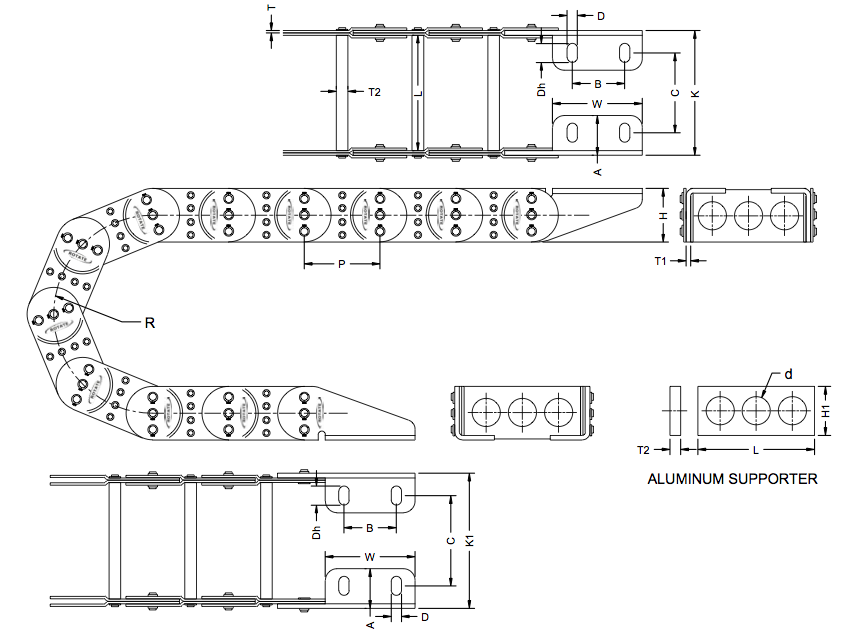

15. The drag chain is attached with the help of a universal end connector and the cable and hose can be separated from each other by using vertical and horizontal dividers as per the arrangement. The drag chain runs on trough channel throughout its length.
